01

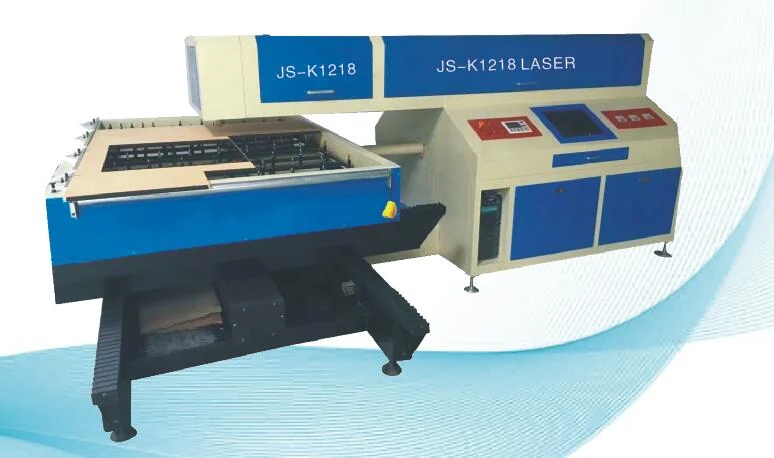

底板激光切割Laser cutting the board
选用平整度较高的胶板或木板，按模具图形切出用于安装刀片的缝隙。A flat plastic or wood board is selected and laser-cut with the slits that hold the blades, following the die layout.
工艺与设备Capabilities
每一处细节，都对应实际需求。Every detail answers a real requirement.
围绕材料、结构、刀锋与装配要求，结合加工设备和人工调校，完成适合模切应用的刀模。Working from the material, structure, blade and assembly requirements, we use machining equipment and hand adjustment to produce a die suited to the die-cutting application.
加工设备Machining equipment
从结构加工，
到刀锋细节。From structural machining
through to blade-edge detail.
雕刻刀模与蚀刻刀模根据设计结构进行加工，可制作高低刀、特殊角度刀锋及吸废结构，适配不同模切需要。Engraved and etched dies are machined to the designed structure, and can be produced with multi-height blades, special blade angles and waste-ejection features to suit different die-cutting needs.
激光刀模生产流程Laser die production process
切割、成形、焊接、装配。Cut, form, weld, assemble.
以胶板刀模为例，依次完成底板开缝、弯刀、轮廓焊接及安装调校。Taking a plastic-board laser die as an example, the board is slit, the blade is bent, the outline is welded, and the blade is fitted and adjusted.
02

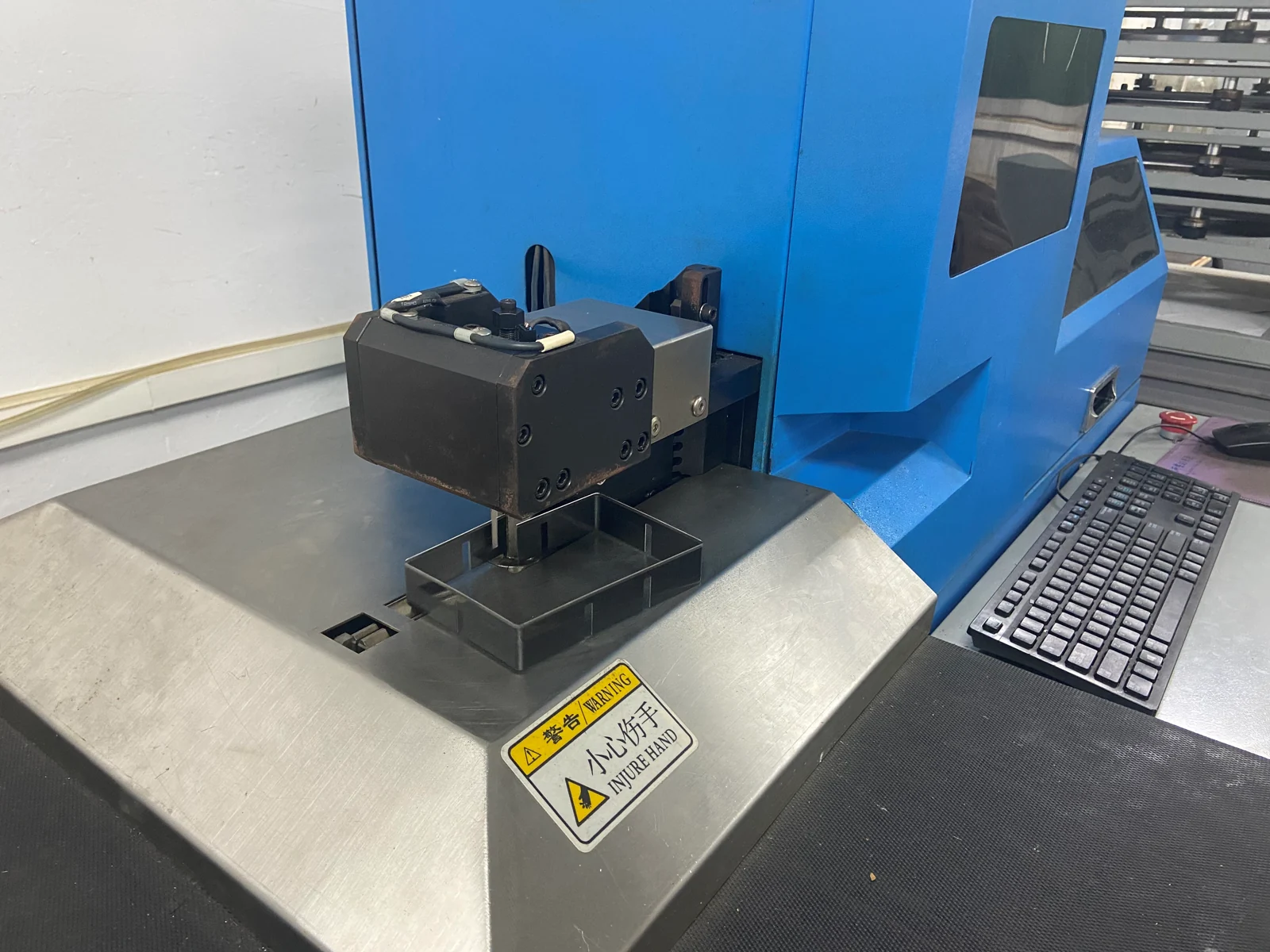

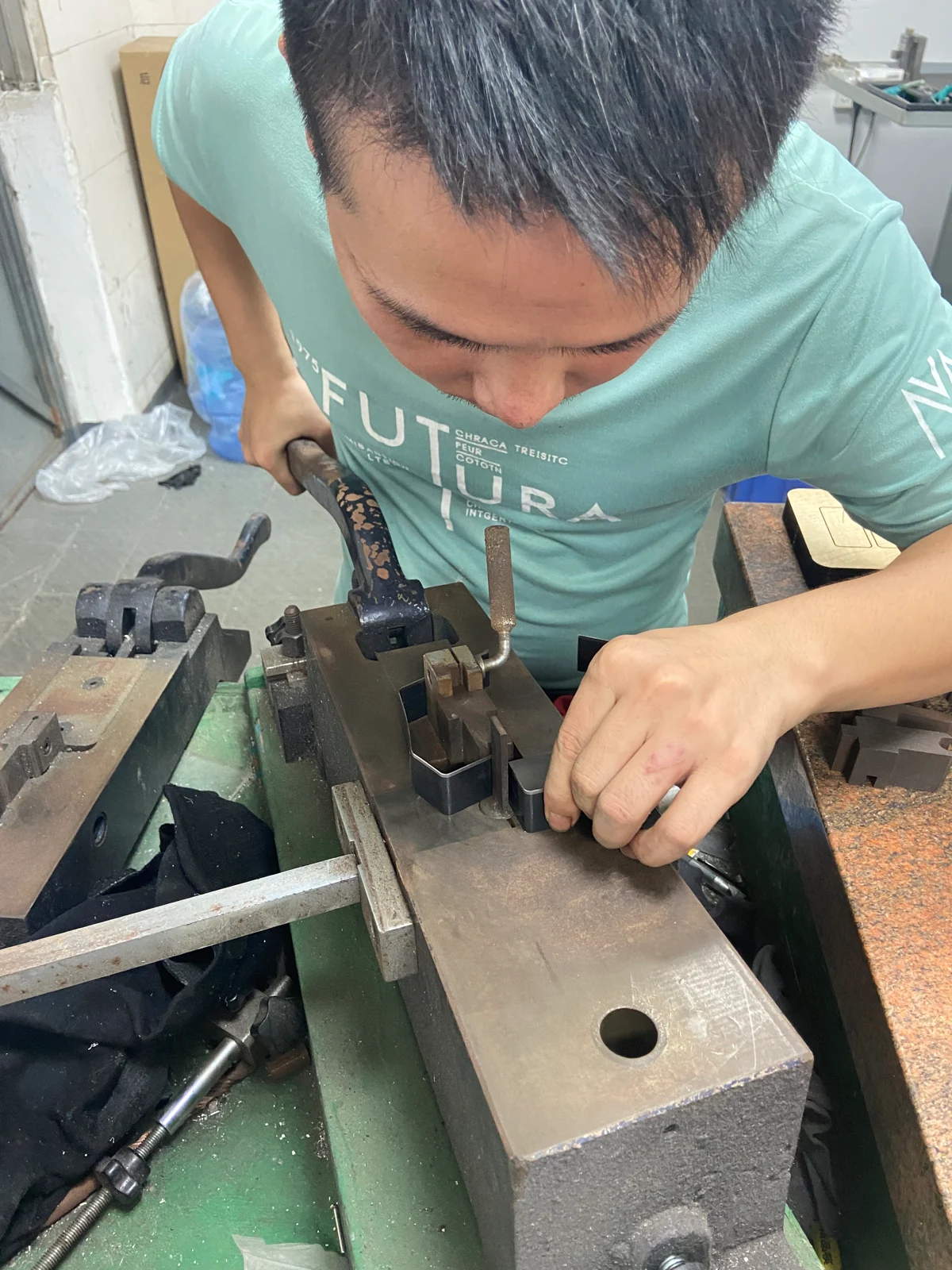

弯刀与人工修整Blade bending and hand adjustment
使用全自动弯刀机形成基本轮廓，再人工修整至所需形状与尺寸。An automatic blade-bending machine forms the basic outline, which is then adjusted by hand to the required shape and dimensions.
03

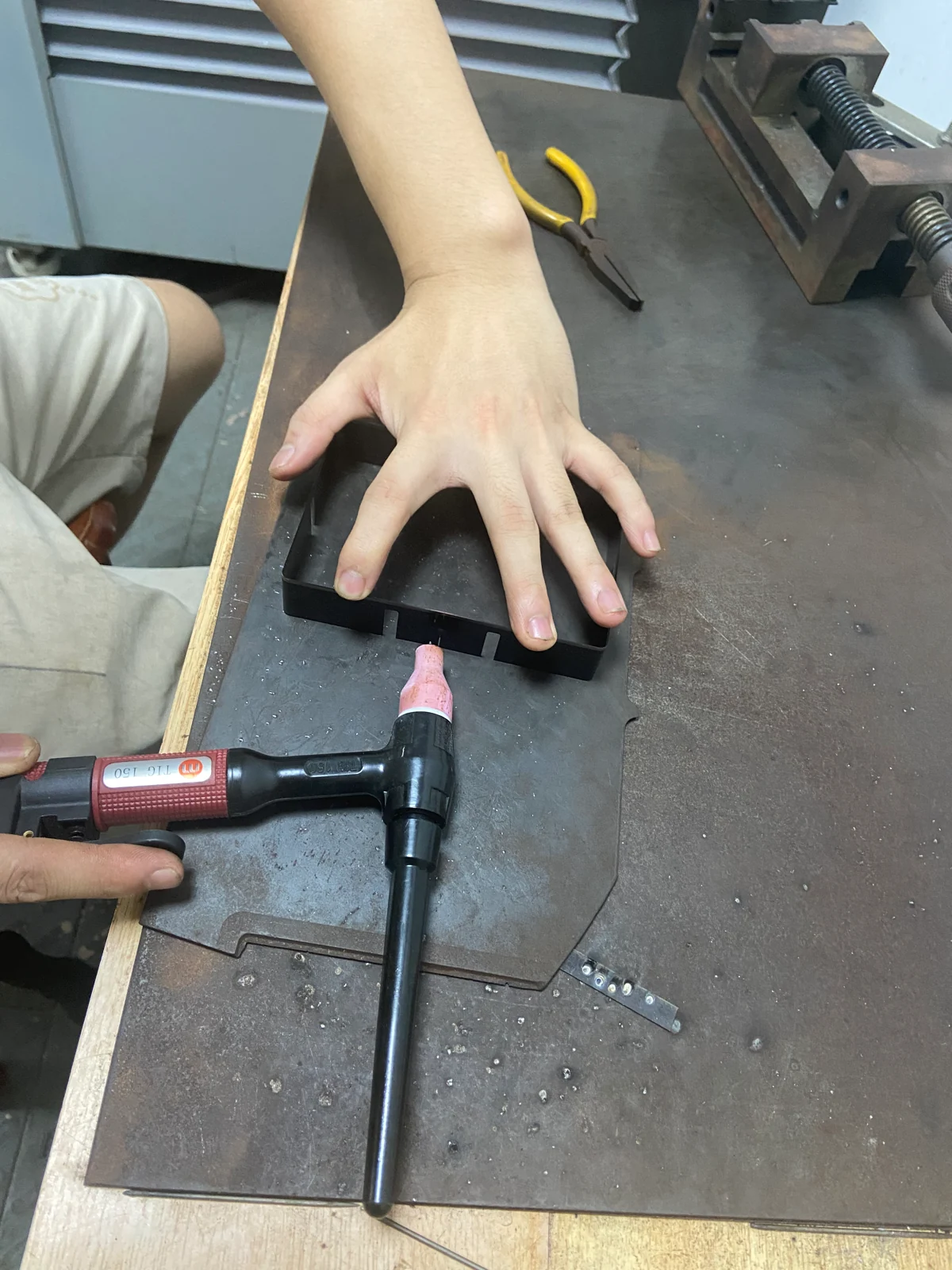

刀片轮廓焊接Welding the blade outline
完成刀片整体轮廓的焊接，为后续装配做好准备。The full blade outline is welded, ready for assembly.
04

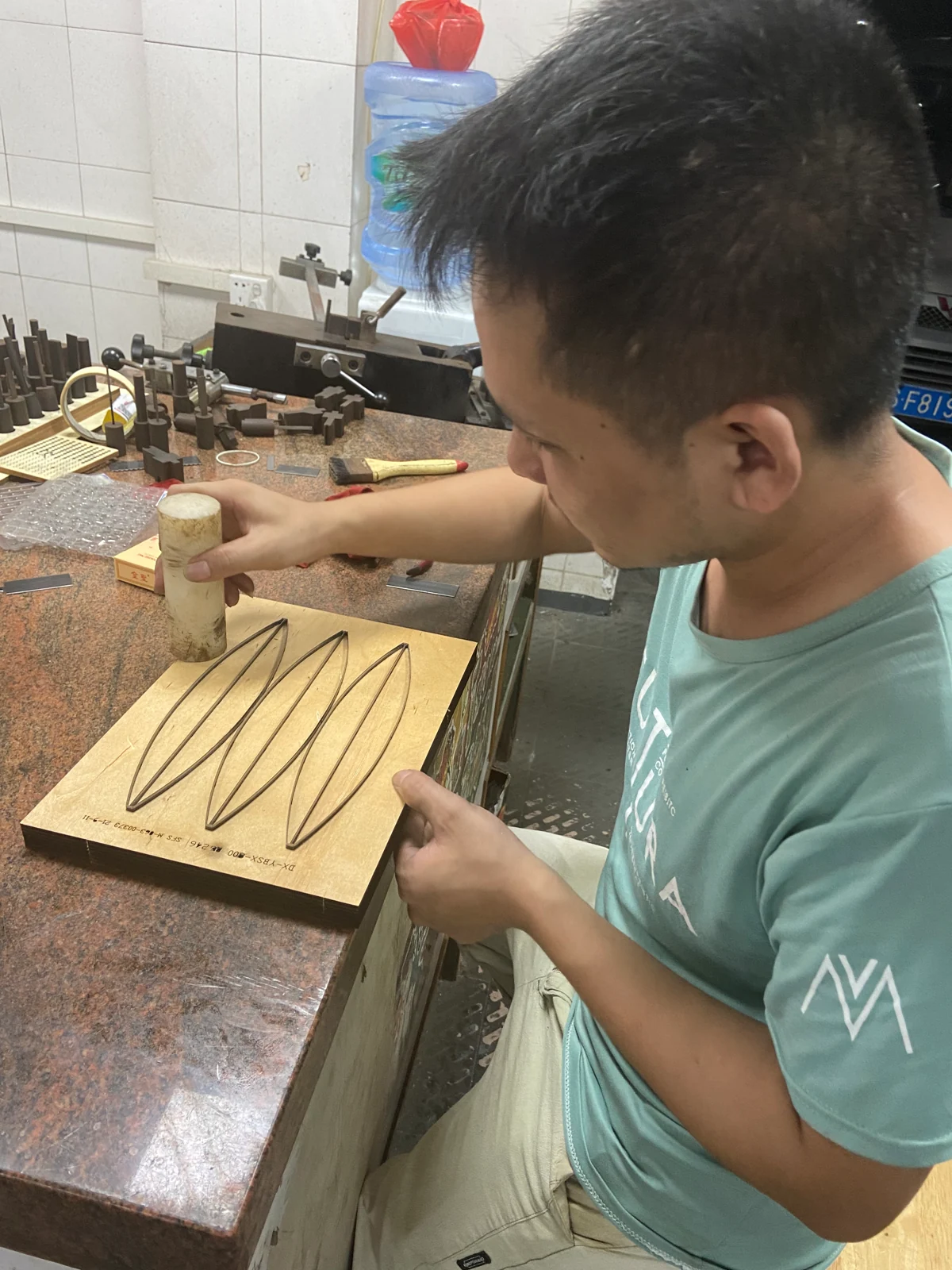

安装与尺寸调校Fitting and dimensional adjustment
将刀片装入已经切割的底板，进行人工尺寸调校，完成刀模制作。The blade is fitted into the cut board and adjusted by hand to the required dimensions, completing the die.
细节与匹配Detail and matching
让结构与刀锋，
适应不同的材料。Let the structure and the blade
adapt to different materials.
01
双峰刀与单边刀Double-bevel and single-bevel blades
根据材料硬度和外观要求选择刀锋形式。The blade form is chosen according to material hardness and appearance requirements.
02
高低刀与半断全断Multi-height blades, kiss-cut and through-cut
根据生产需要设计不同高度的刀锋。Blades of different heights are designed for the production requirement.
03
吸废结构与治具配合Waste-ejection structures and fixture matching
结合废料形状、安装方式和后续操作确定结构。The structure is set by the waste shape, the mounting method and the following operations.
按需定制Made to order
沟通产品需求Discuss your requirements 从您的模切需求开始。Start with your die-cutting requirement.
提供产品图纸、材料与厚度，一起明确刀模结构和加工要求。Send us your part drawing, material and thickness, and we will define the die structure and machining requirements together.
